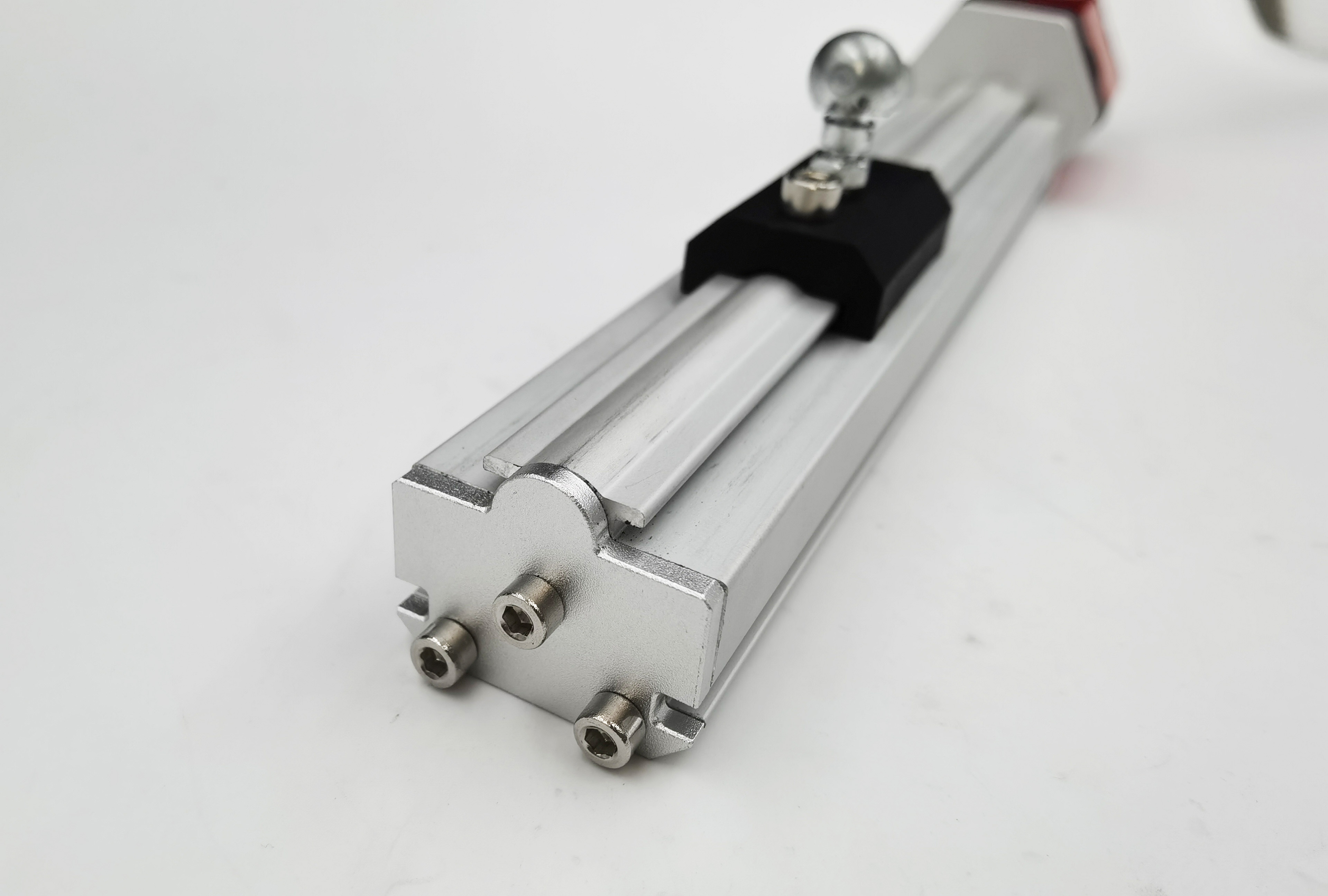

Milont TP series Magnetostrictive displacement sensor

Strong and durable: Fully enclosed design, the highest IP68 protection level

Straight line measurement Absolute output, no need to return to zero

Easy to use: Standard signal output, maintenance free

Never wear: Continuous non-contact measurement

Full range adjustable: 100% adjustable zero and full range

High resolution: The highest resolution is 0.5um

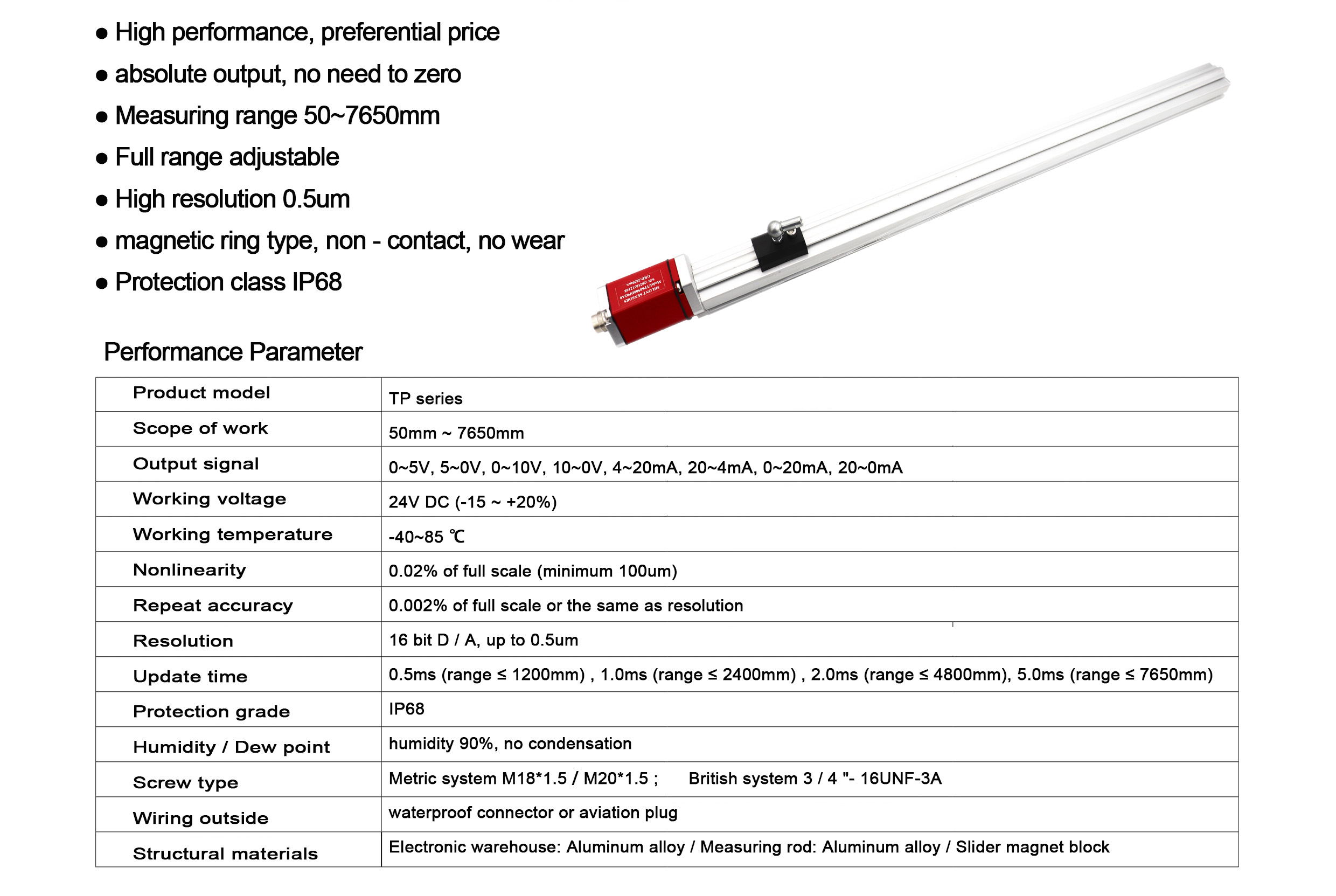

產(chǎn)品參數(shù) | Product parameters

Input

Measurement data location

Measurement range: 50mm-7650mm

?

Output

Voltage010Vdc,10~0Vdc,05Vdc,50Vdc

(controller minimum load: 5k Ohms

Electric current 420mA204mA,020mA200mA

(minimum / heavy load 0 / 500 Ohms)

?

Accuracy

Resolution 16 bit D / A, up to 0.5um??????

Nonlinearity < 0.02% of full scale (minimum 100um)

Repeatability < 0.002% of full scale or the same as resolution

Update time 0.5ms (range ≤ 1200mm)

1.0ms (range ≤ 2400mm)

2.0ms (range ≤ 4800mm)

5.0ms (range ≤ 7650mm)

?

Working conditions

Magnetic ring speed: arbitrary

Working temperature - 40 85

Humidity / dew point humidity 90%, no condensation

Temperature coefficient<30ppm /

Protection gradeIP65 RP aluminum forming outer pipe

IP67 RH pressure outer tube ??????

IP68 RH pressure resistant outer pipe (waterproof type)

?

?

?

Structure and materials

RP series; ?????Electronic warehouse Aluminum alloy profiles ???????????????

Measuring rod Aluminum alloy ????

Magnet Slider magnet or floating magnet ?

RH series: ?????Electronic warehouseAluminium alloy profile ?????????????????

Measuring rodstainless steel 304 or 316L??

Magnetic ringStandard magnetic ring or open magnetic ring ??????

Outer pipe pressure40MPa (continuous)

60MPa (peak value)

?

Install

Installation directionarbitrary direction

Thread form metric m18 × 1.5 ,M20 × 1.5

British system 3 / 4 "- 16UNF-3A

?

Electrical connection

Outlet type waterproof connector or aviation plug

Input voltage 24 VDC (- 15 ~ + 20%)

polarity protection Maximum - 30VDC

Overpressure protection Maximum36VDC

Working current 70mA (varies with measuring range)
