Sensor Transmitter

Waterproof analog transmitter module can be connected to any electronic ruler or resistance output type drawstring ruler,?

and convert the DC voltage signal to 0-3.3V, 0-5V, 0-10V or 4-20mA ( Two-wire or three-wire) current signal.

?The transmitter has a built-in lightning protection chip, which has high protection performance, and can be

used in the open air or work stably in harsh environments for a long time


產(chǎn)品參數(shù) | Product parameters

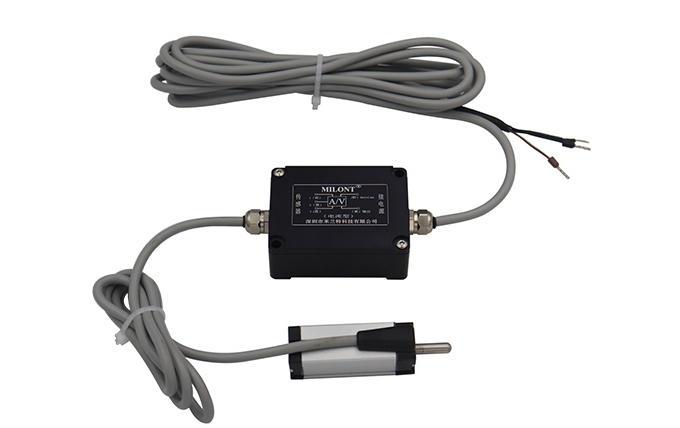

Product introduction: The analog transmitter module can be connected to any electronic ruler or

?miniature rope ruler, and output 0-3.3V, 0-5V, 0-10V voltage signal, 4-20mA current signal (two-wire or three-wire system)

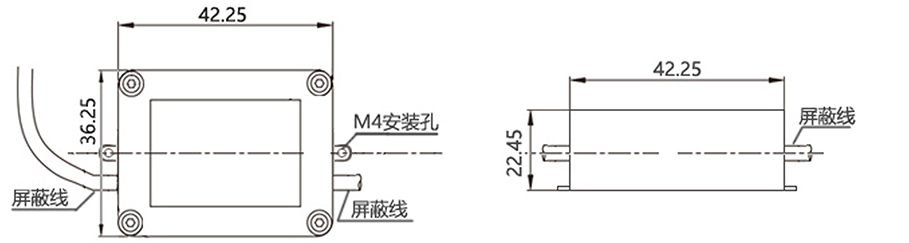

Installation size:

安裝 變送模塊-1.png



Product introduction:

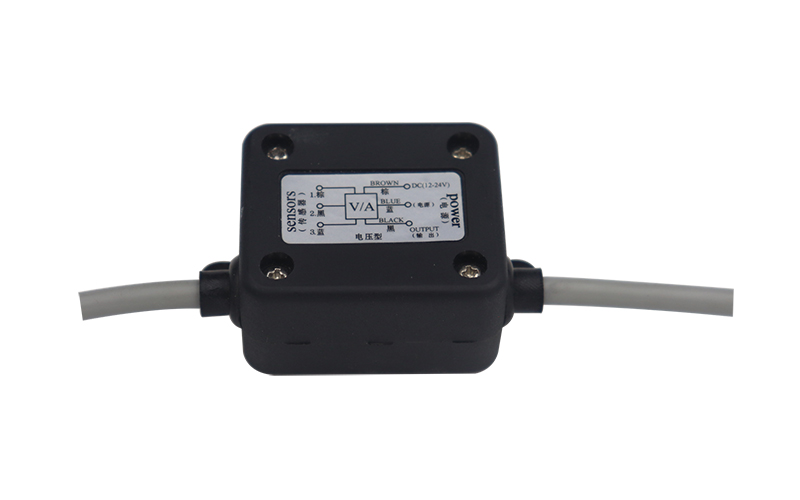

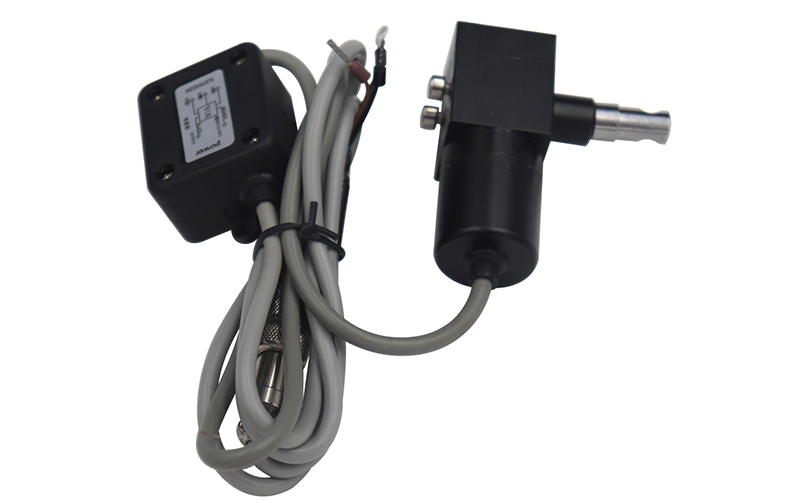

The waterproof analog transmitter module can be connected to any electronic ruler or resistance

?output type rope ruler, and convert the DC voltage signal into 0-3.3V, 0-5V, 0-10V or 4-20mA (two-wire system).?

Or three-wire system) current signal. The transmitter has a built-in lightning protection chip, which has high?

protection performance, and can be used in the open air or work stably in harsh environments for a long time

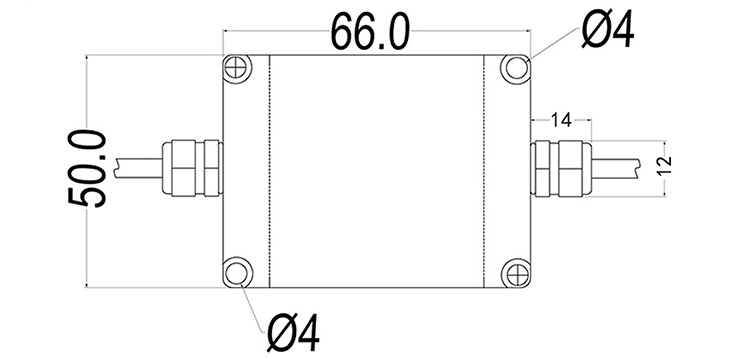

Installation size:

安裝 變送模塊-2.png



Product introduction:

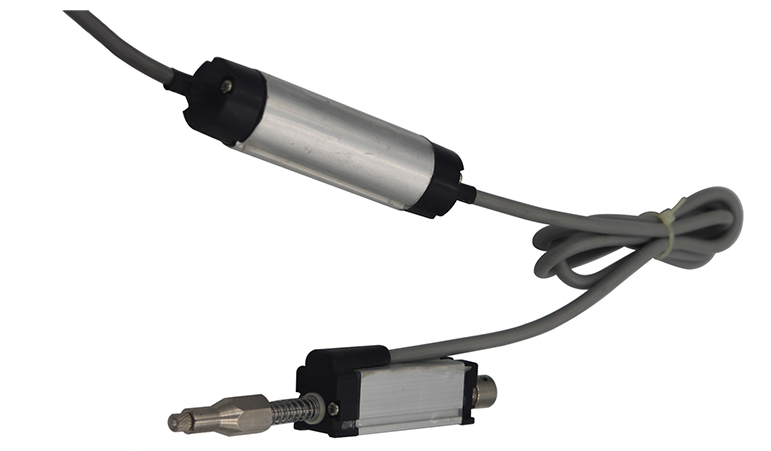

RS485 digital transmission module can be connected to any electronic ruler or resistance

?output type drawstring ruler to convert DC voltage signal into RS485 digital signal

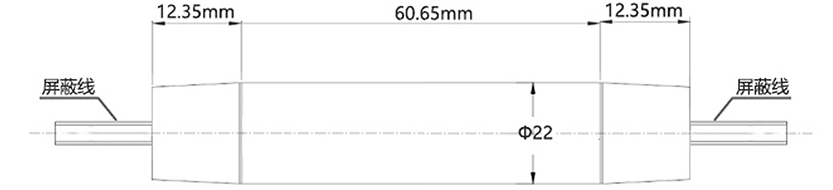

Installation size:

安裝  變送模塊-3.png
